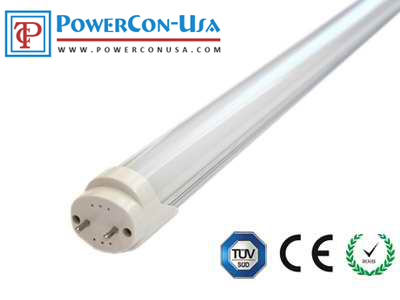

PCU-160lm/w T8 LED Tube
PCU-160lm/w T8 LED Tube


PCU-160lm/w T8 LED Tube

1. Isolated constant current driver, using RUBYCON capacitor.
2. LED type: SMD2835.

3. Light efficiency bases on clear cover and 6000K color temperature. Lumen of milky cover tube is 7% less.
4. Energy Efficiency Class: A++.
5. CRI: 80~85Ra; Power Factor: >0.95.
6. The tube can pass 4000V HI-POT test.
7. Shell Material: Aluminum Alloy, PC.
8. Working temperature: -30°C to +40°C.
9. Color temperature: 3000K, 4000K, 5000K, 6000K optional.
10. Working voltage: AC 100-240V.
11. 5 years warranty.

Internal driver:
The lifespan of LED tube depends on the LED driver, and the lifespan of LED driver mainly depends on its capacitor quality.
There are lots of different quality LED tubes in the market, most of them use CapXon, BERYL, or AISHI capacitor.

powercoon u.s.a only Rubycon or Nippon Chemi-Con, top brand capacitor.

PCU-160lm/w T8 LED Tube

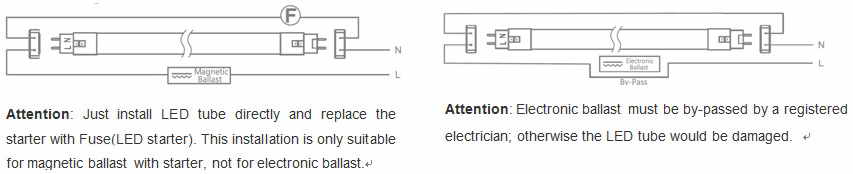

1. Installation for Magnetic Ballast(with Starter). 2.
Installation for Electronic Ballast(no Starter)
PCU-160lm/w T8 LED Tube
